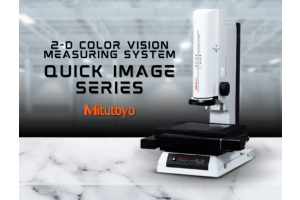

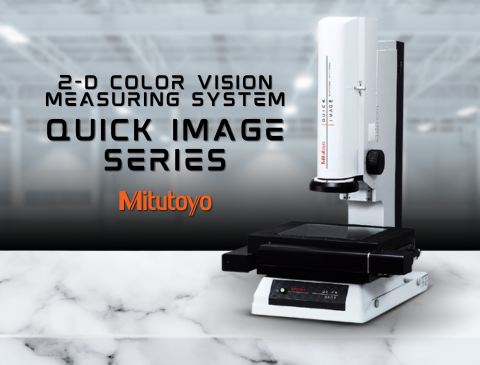

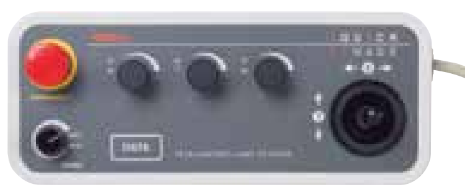

MITUTOYO - 2-D Color Vision Measuring System : QUICK IMAGE Series | JSR GROUP

Lets you perform measurement stable and highly accurate measurements no matter where they are performed within the screen

The highest level of measuring accuracy within the screen in its class

• Accuracy of ±1.5μm within the screen, repeatability of ±0.7μm in high-resolution mode (QI-B Series) and the ability to focus through a wide range.

Both a wide view field and high accuracy

• Sub-pixel processing enables high-accuracy edge detection.

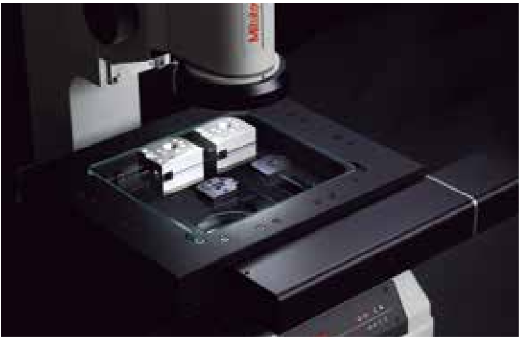

Stable and highly accurate measurement of large workpieces

Highly accurate stages

• Stages come in various sizes with an accuracy of ± (3.5 +0.02L) μm, letting you perform highly accurate and stable measurements, and obtain reliable data for any kind of workpiece.

Rigid construction

• Robust construction with a maximum load capacity of 20kg and a vertical stroke of 100mm allows large workpieces to be measured.

Ultra-long working distance of 90 mm

• The 90mm working distance ensures that you can focus, even with stepped workpieces, without worrying about collisions.

Human errors due to focusinghave been eliminated

Utilizes our in-house developed Telecentric Optical System

• Errors due to height are strictly minimized within a depth of focus with steps of up to 22mm, and measurements are possible in which human errors due to focusing are eliminated.

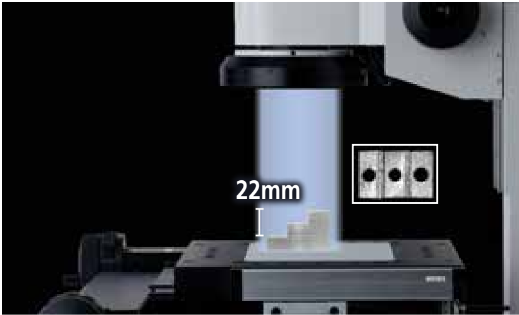

Measuring a stepped workpiece

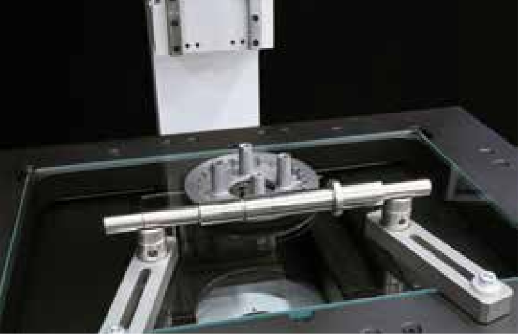

Measuring of a cylindrical workpiece

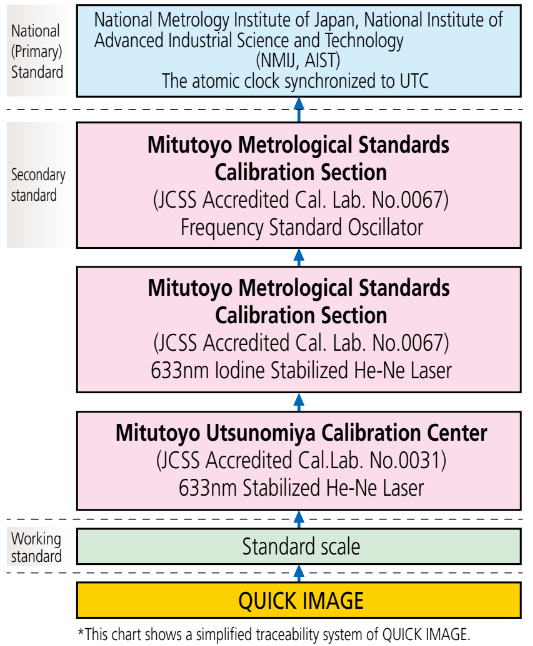

Traceability to national standards

Mitutoyo...
Uses calibration artifacts traceable to national standards

• Mitutoyo has a large collection of standard artifacts whose dimensions are traceable to the national length standards of Japan. These artifacts are used to calibrate the specialized equipment used in the calibration of Mitutoyo's measuring tools and instruments, and so traceability to international length standards is established and maintained. Mitutoyo also provides the service of temperature calibration that is absolutely essential to high-accuracy length measurement.

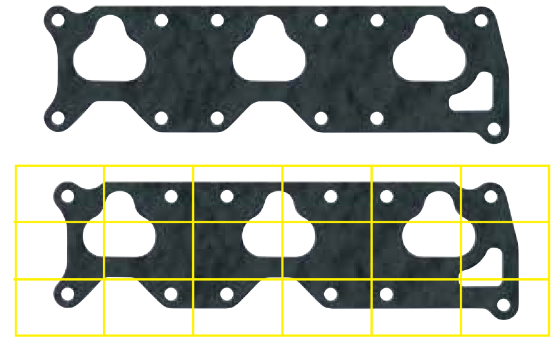

Multiple view-field stitching image

Prompt measurement with the entire
workpiece image on screen

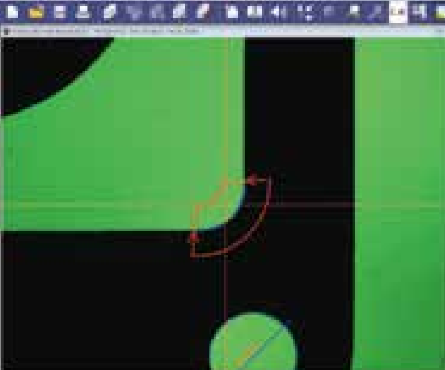

Correct measurement of a small feature is
enabled by zooming in

Simple execution of multiple measurements

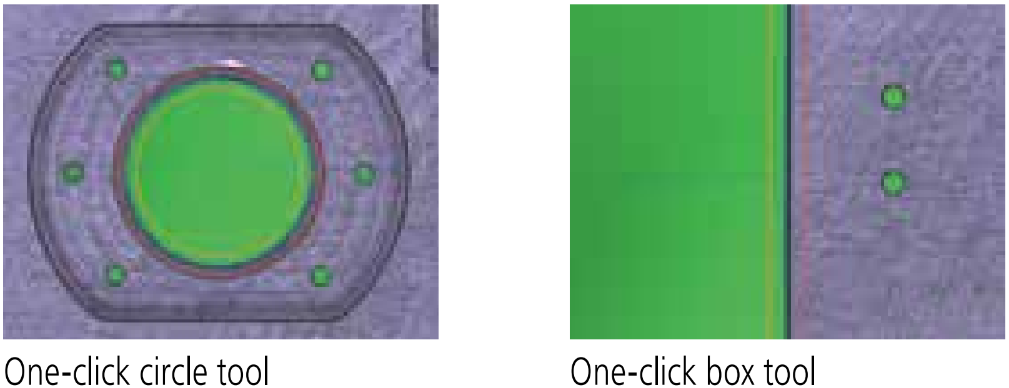

One-click tool

• With just one click, anyone can easily perform multiple measurements. The outlier removal function automatically eliminates unnecessary measurement points, thus enabling accurate and stable multipoint measurement.

Easy-to-operate without the manual

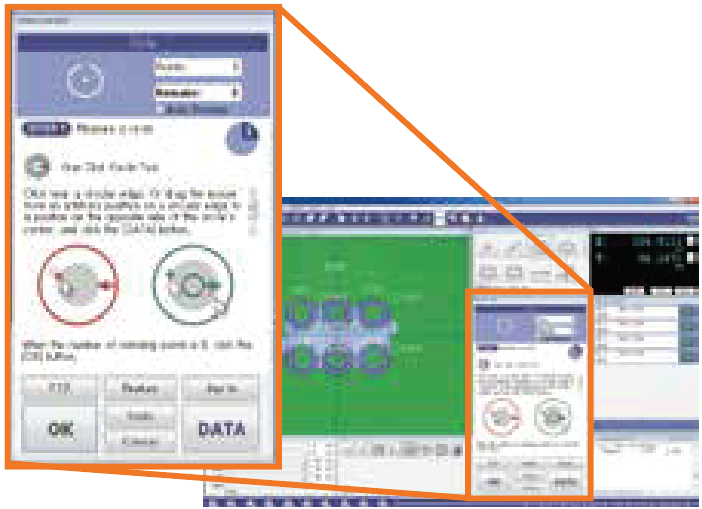

EZ mode

• This mode provides an operation guidance display to guide the operator even if it's their first time performing measurements, so there is no need to keep referring to the instruction manual while working.

No troublesome positioning is required

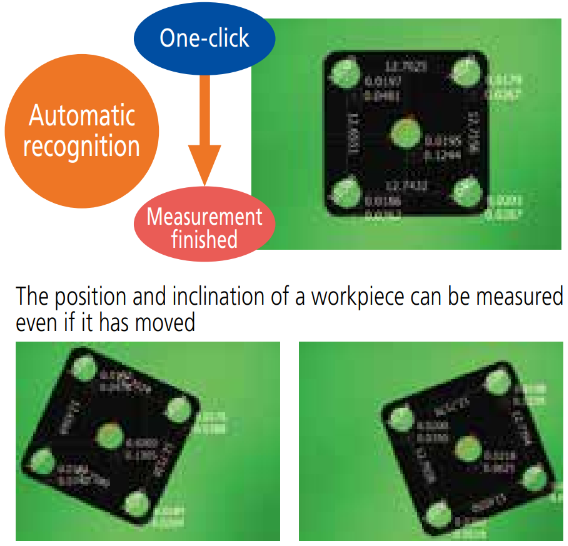

One-click execution function

• After placing the workpiece within the field of view, the machine automatically recognizes the position and angle using a pattern search function and then finishes the measurements. There is no need for positioning and axiallyaligning the workpiece.

Simple focusing

Wide focus range

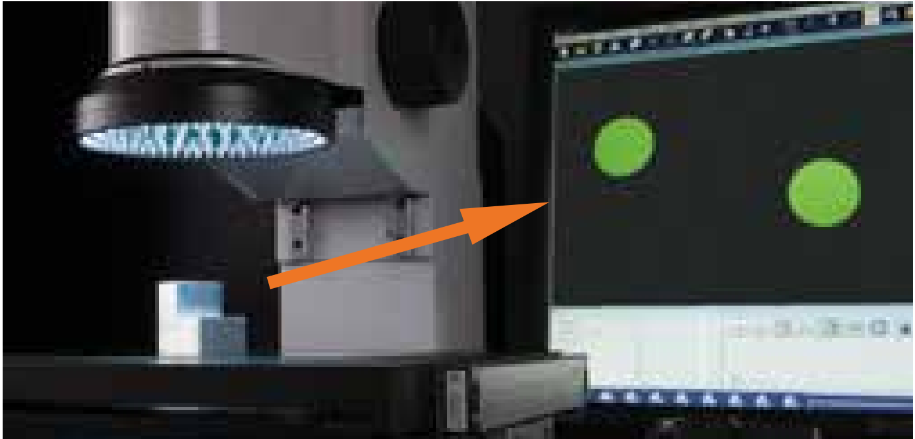

• Our specifically-designed optical system has achieved the long focal depth of 22mm. This allows measurement virtually without the time-consuming focusing task, supporting an efficient measurement operation.

Focusing in on a workpiece like the one shown above is unnecessary.

An intuitive OK/NG judgment of measurement is possible

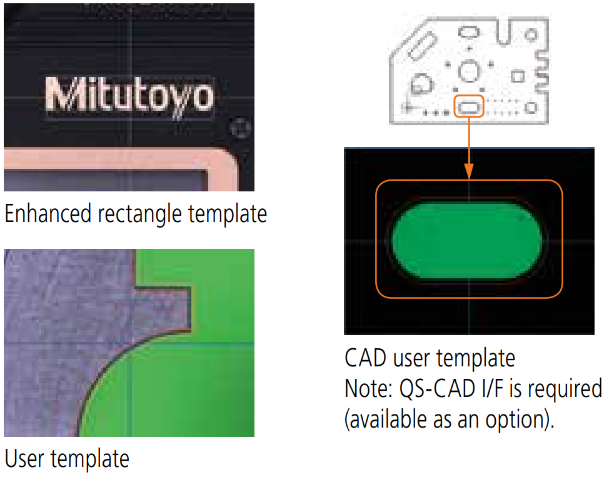

Template comparison test function

• Use the function to compare workpieces against their templates to enable OK/NG judgments to be made at a glance. The function lets you utilize any drawing and CAD model for templates, with the exception of standard templates.

Capable of visually capturing an entire image

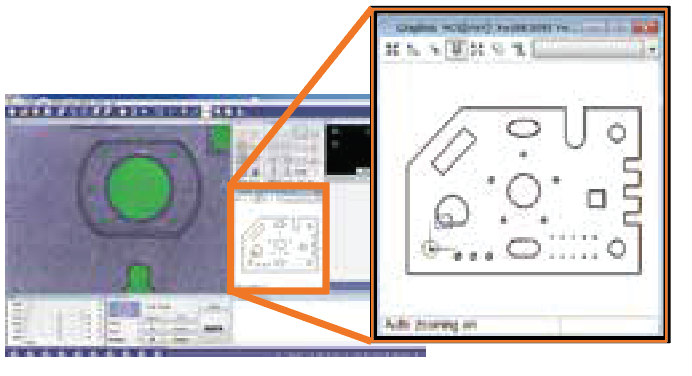

Graphics function

• The current position, coordinate system, measuring item and measurement result are automatically displayed in a graphics window. The graphics window prevents omissions and errors with the measurements from occurring. 2-D CAD model data can be imported (optional) in order to better capture the actual full image.

Confirm measurement results quickly and easily

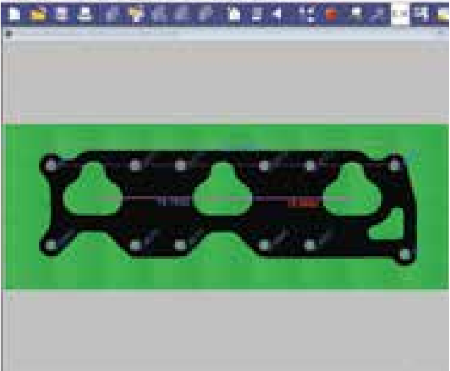

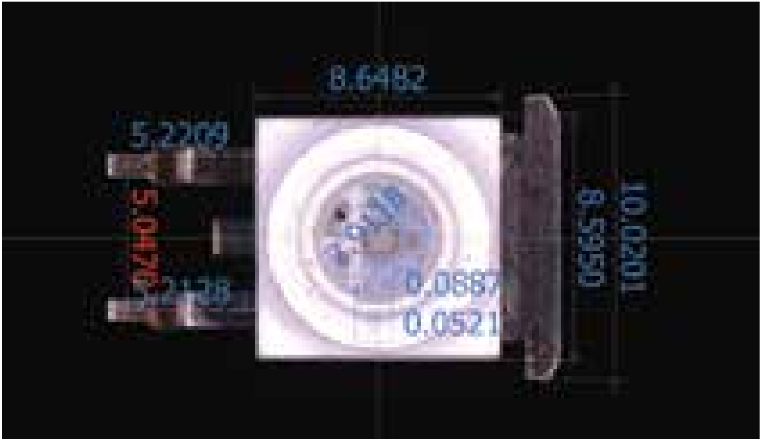

Video window measurement result display function

• Measurement results can be understood intuitively just by looking at a measurement image. Any out-of-tolerance result data is easily identified by changing its display color. A graphic image with measurement data also leads to creation of a user-friendly report.
Each OK/NG result is color-coded with its display color freely selectable.

The measurement results display for OK/NG can be color-coded to meet your requirements.

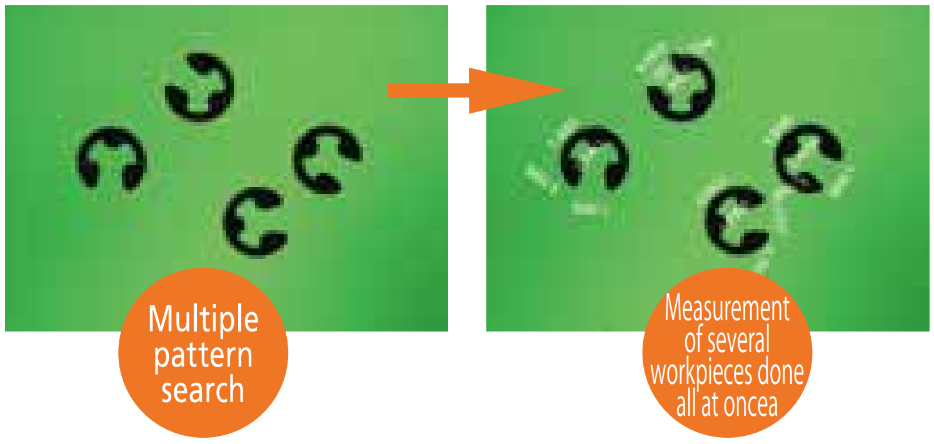

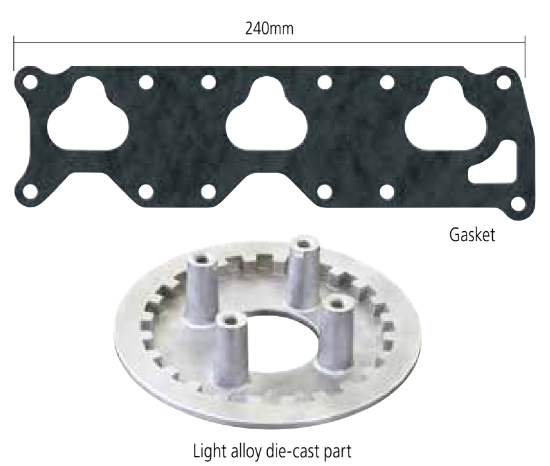

Measure multiple workpieces within the field of vision all at once

Locate and measure multiple workpieces with just one click

• Use pattern search for multiple workpieces within the screen view, and measure them all in one operation with the one-click execution function. This eliminates the need for accurate positioning of workpieces and cumbersome setup of fixtures.

Generate reports and observe, all on one machine

High-definition color camera

• This camera provides high-resolution color images for effective use in high-accuracy measurement and workpiece surface observation. Bright color measurement images are easily stored as a file and can be used for creating an easily understood measurement report.

Capable of supporting a variety of workpieces

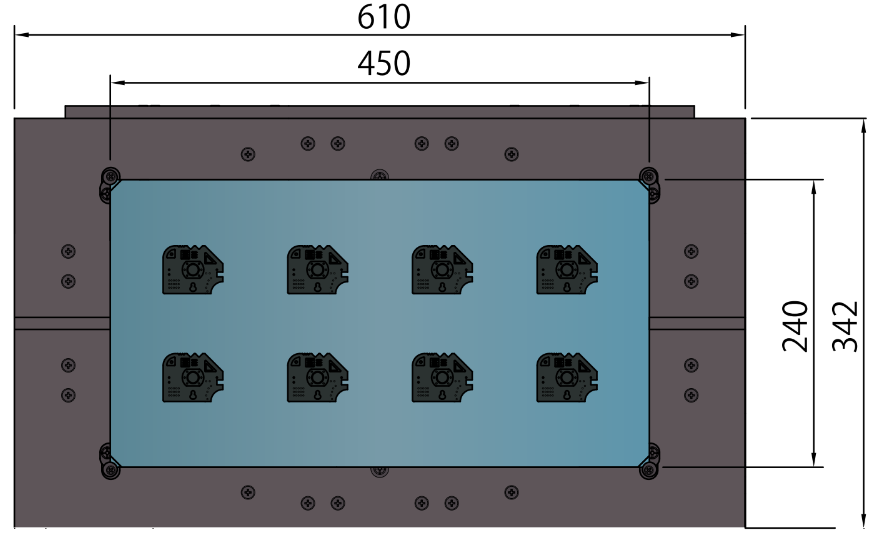

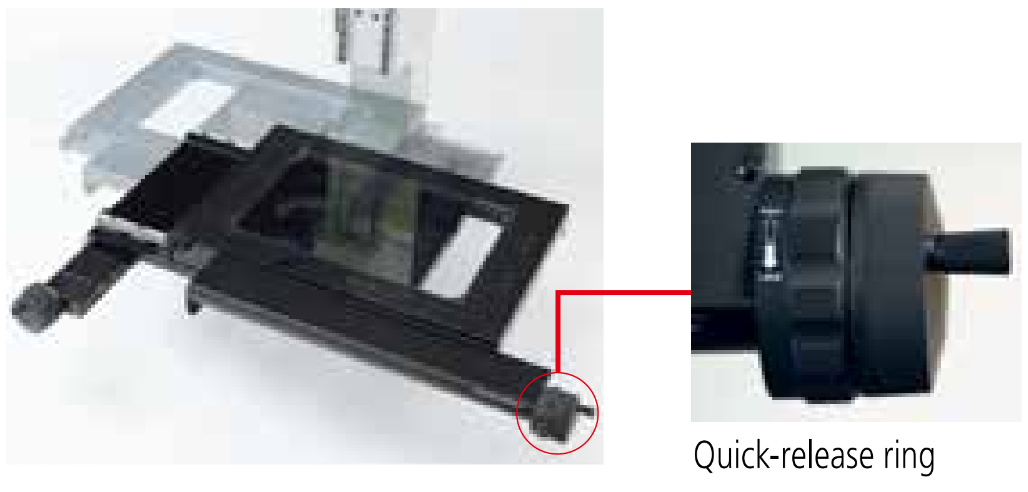

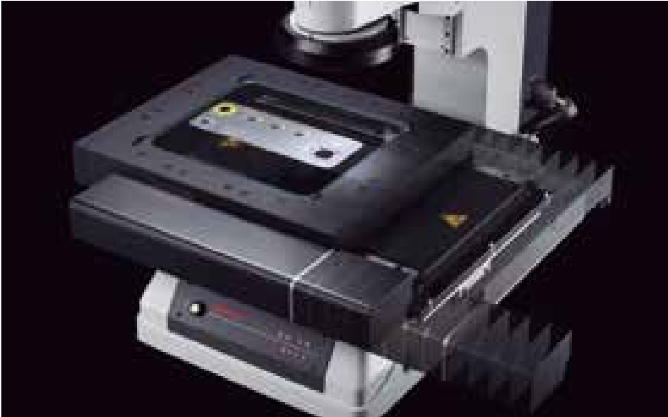

Large-stage model and Extensive line up of stages

• The large stage allows you to arrange multiple workpieces and measure them in a single setup, thereby saving valuable time that would otherwise be spent in loading and unloading the stage.
• XY measurement range: Measure workpieces up to 400x200mm.
• 100mm Z-stroke allows you to measure tall workpieces.
• A maximum load capacity of 20Kg allows you to measure heavy workpieces.

Take advantage of the largest stage by performing multiple measurements at one setup.

Simple "OK/NG judgment" of multiple workpieces

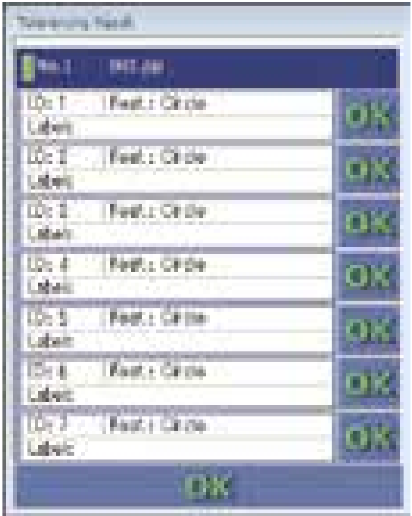

Tolerance judgment result display function

• OK/NG judgment can be seen at a glance, for faster operation.
• OK/NG judgment can be done for each measurement item, and judgment can be passed on each workpiece.
• Prevents NG data omissions.

Simple execution of measurement procedure programs

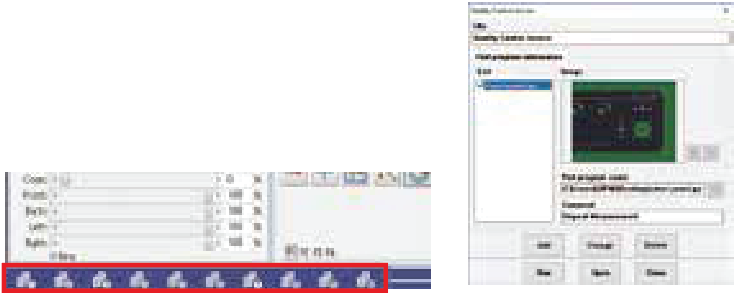

Program launcher

• A measurement procedure program can be stored under a dedicated icon along with a photo and comments to enable the required programs to be started easily.
• 10 icons are available and programs can be managed for each operator or workpiece.

High accuracy measurement with bright and clear images

Wide field of view / high-resolution mode

• The high resolution mode produces the same wide field of view as the normal mode that operates with a deep focal depth and can therefore share a single measurement procedure so that you can execute seamless measurements.

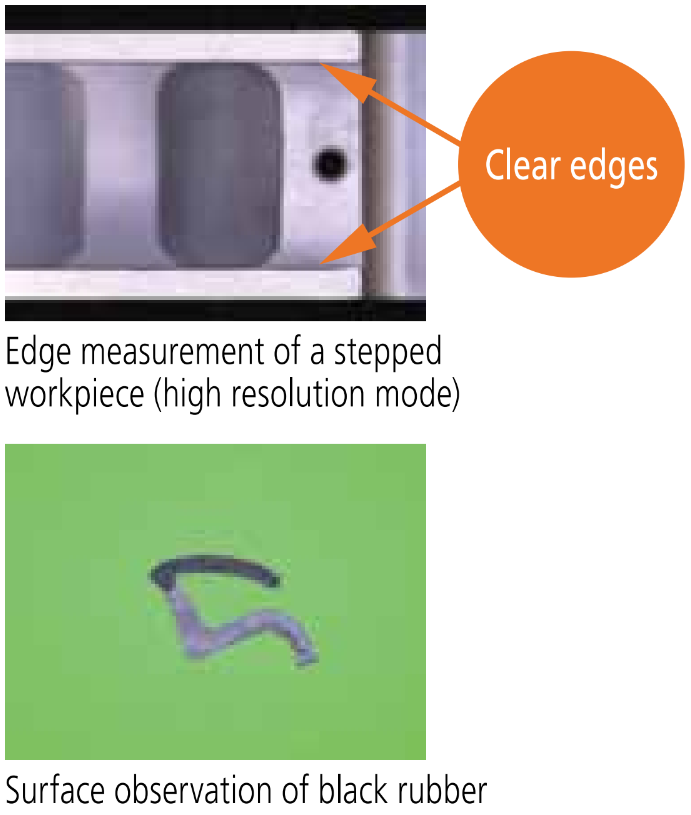

• The shallow depth of focus in high resolution mode shows the edges of stepped workpieces more clearly, making measurements highly accurate.

Enhanced illumination

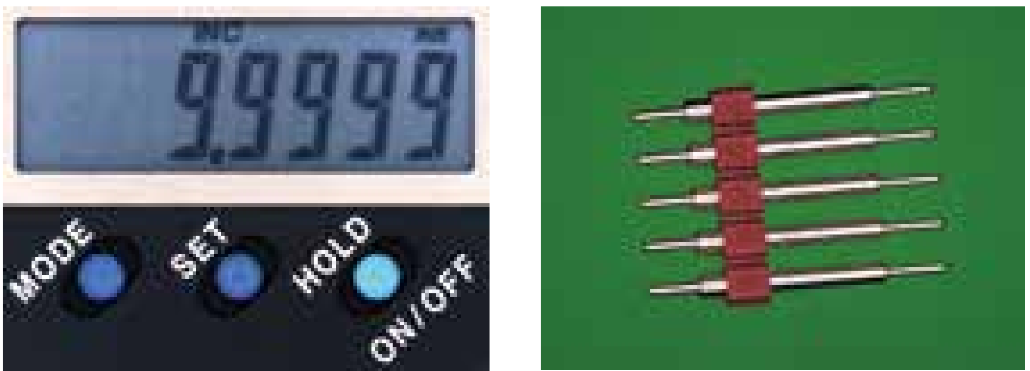

• The enhanced illumination function of the high-resolution mode enables measurements of low reflectivity workpieces like rubber and black resin moldings to be performed with a clear image.

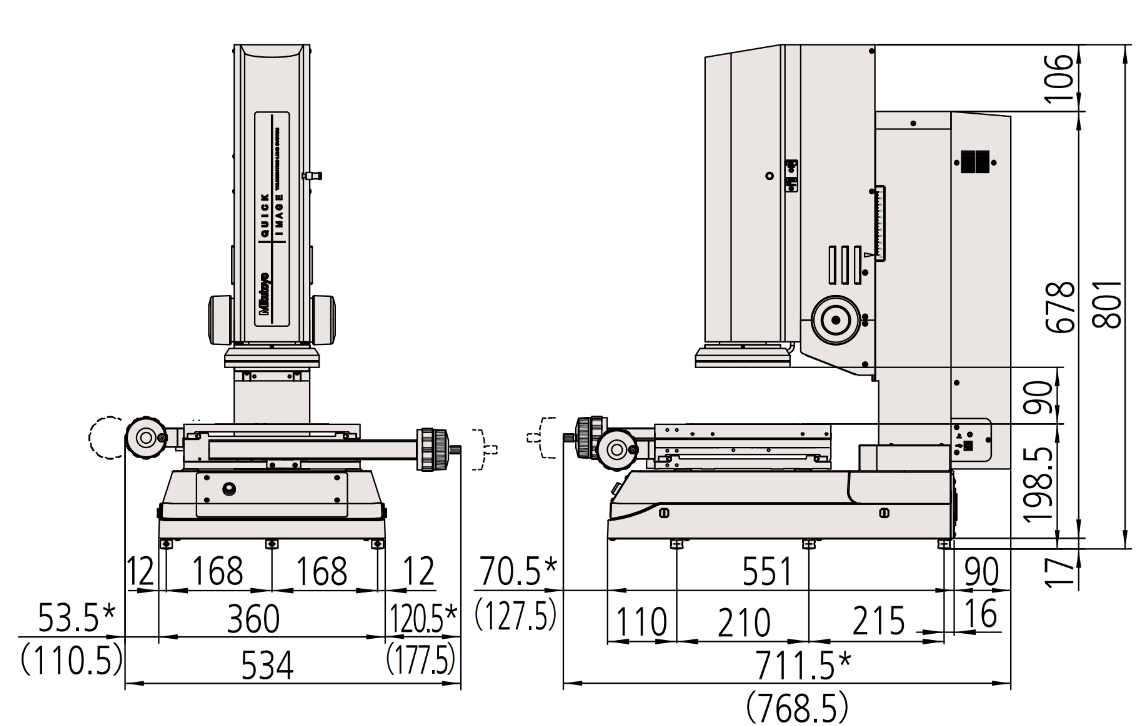

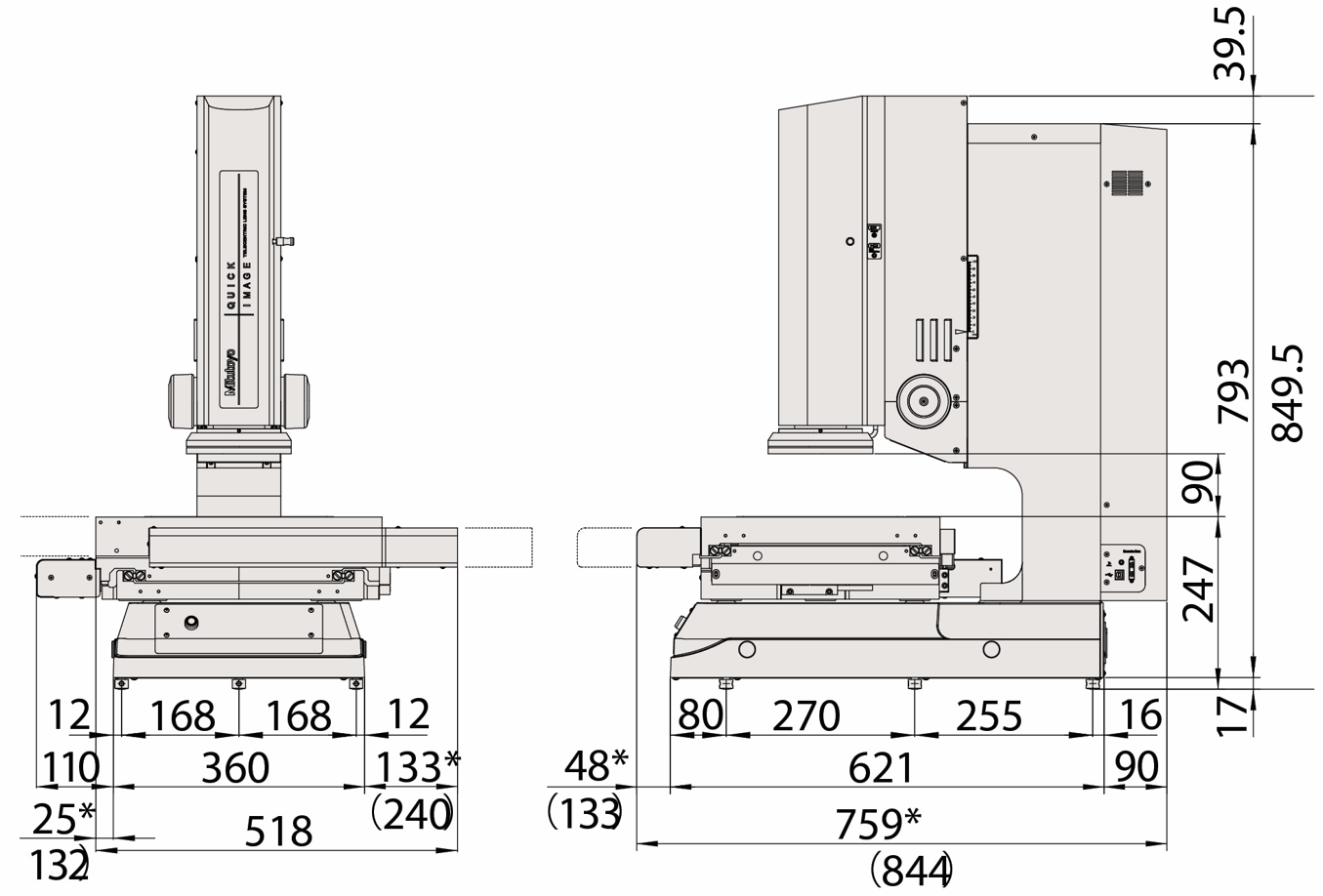

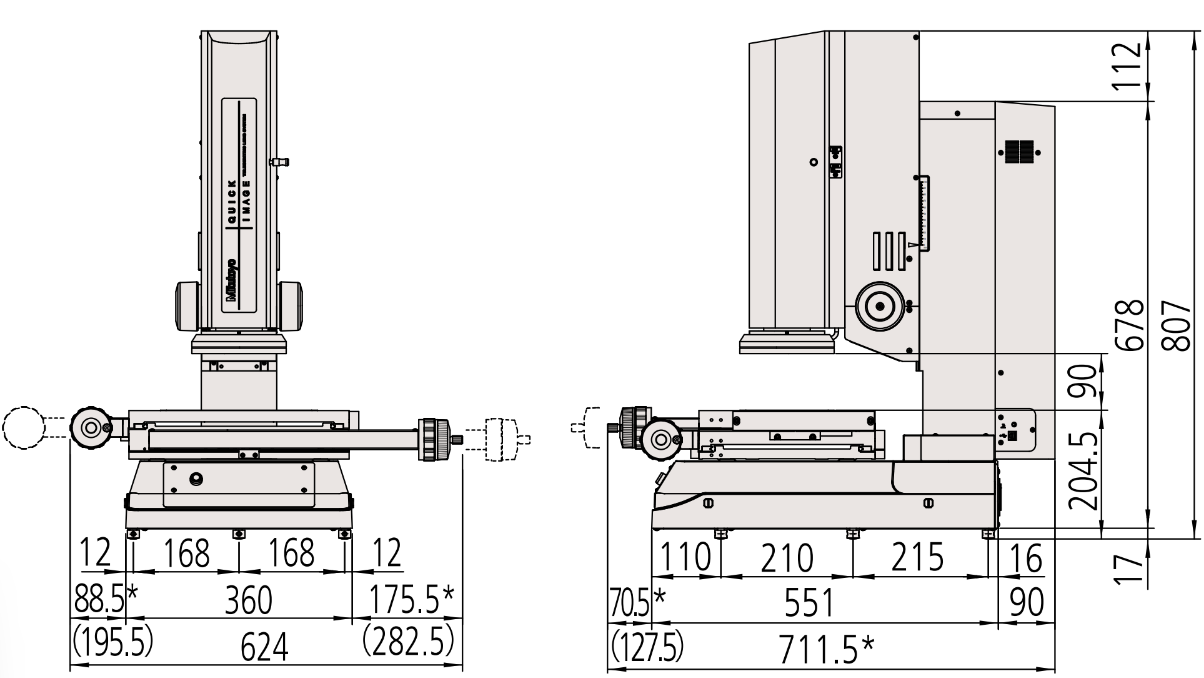

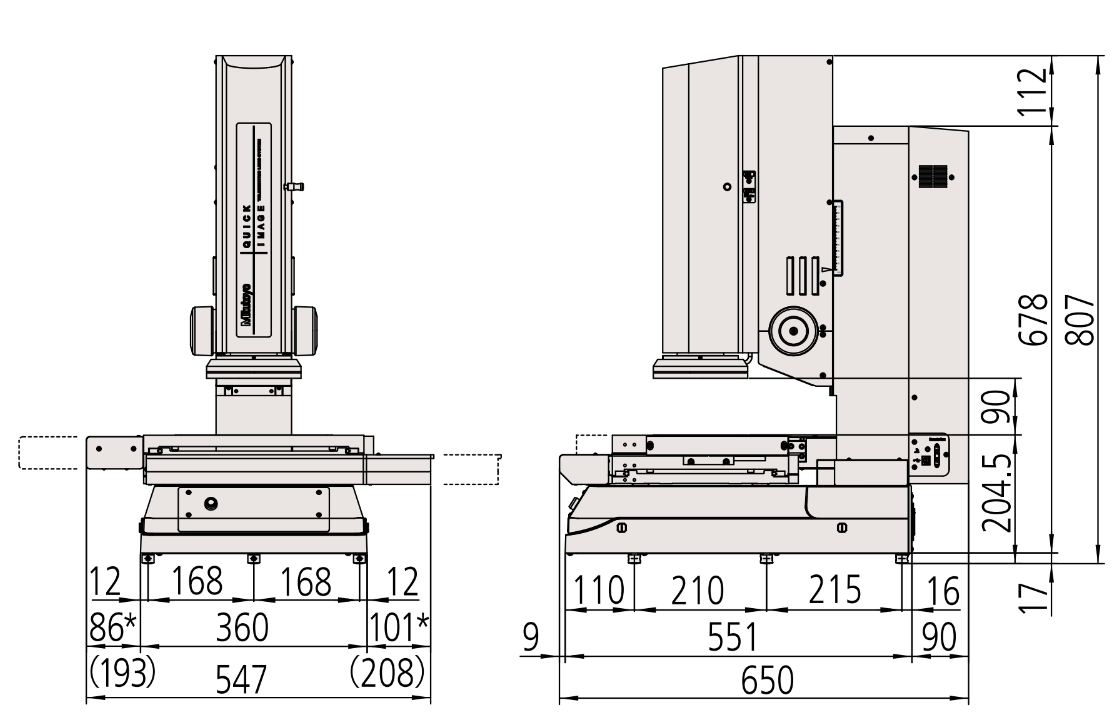

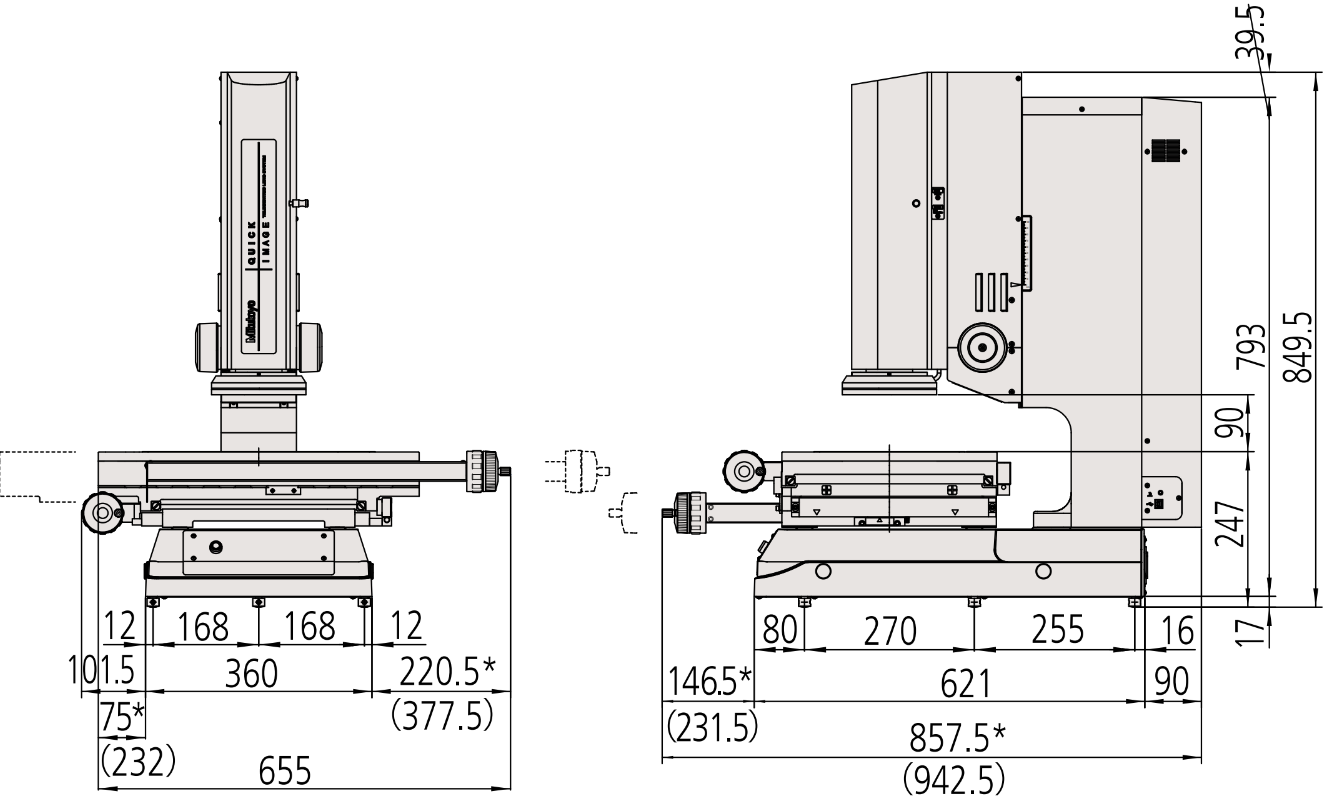

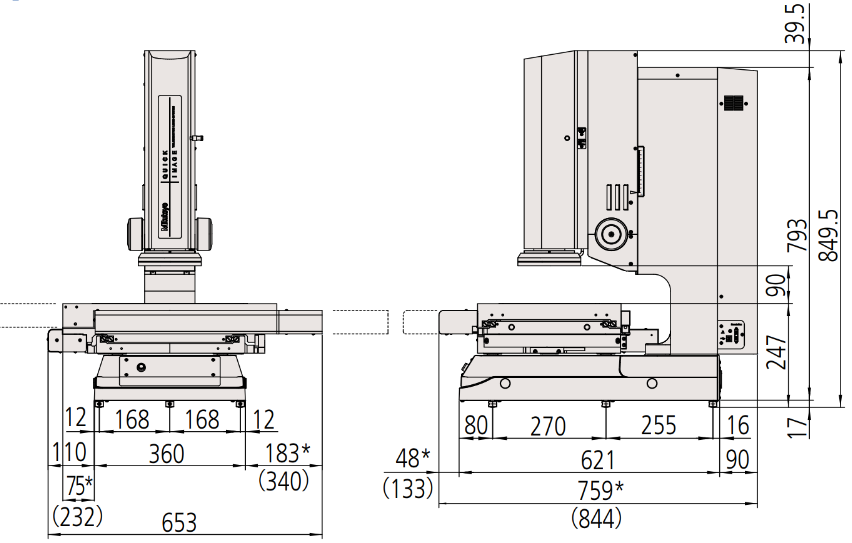

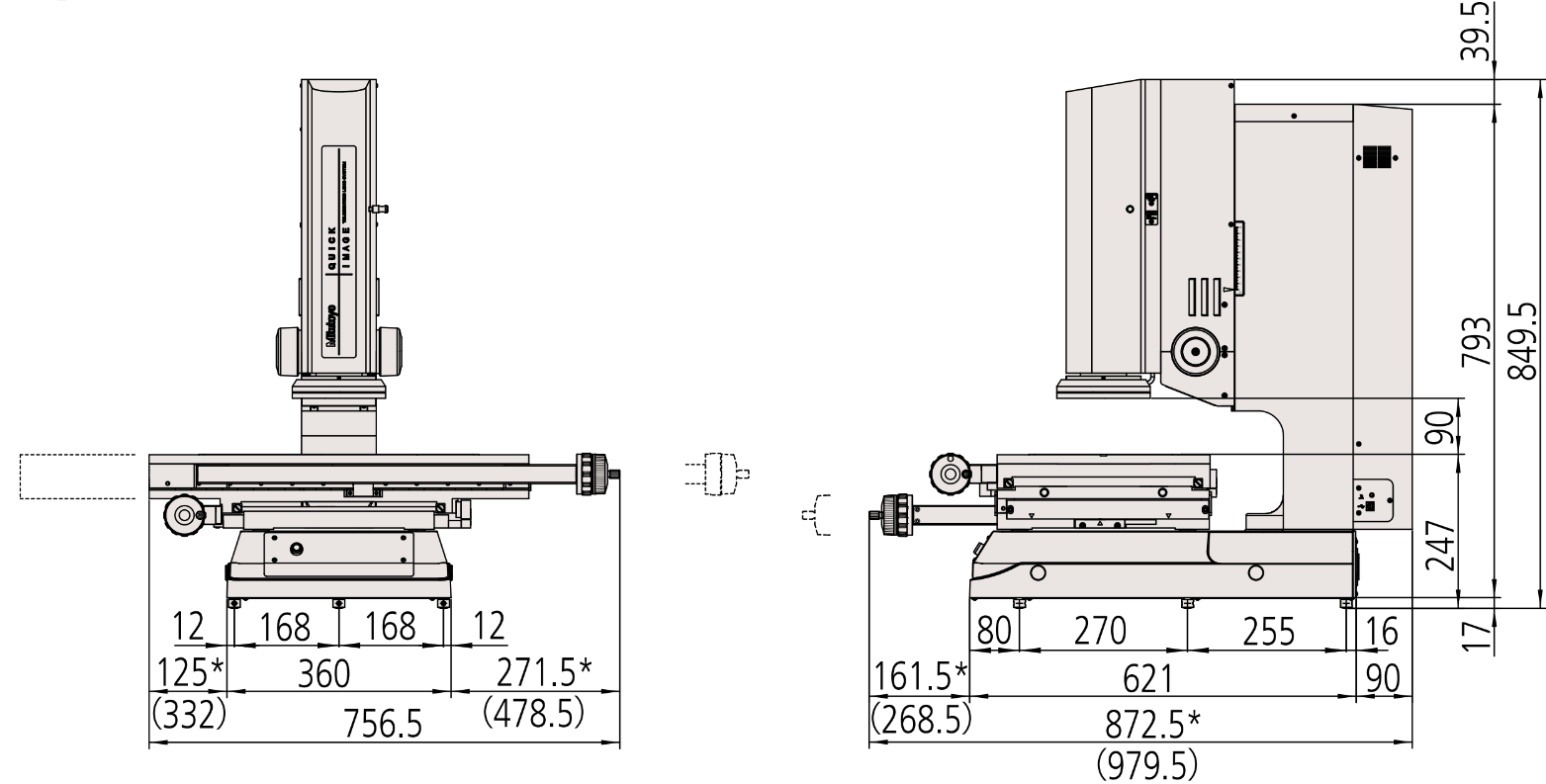

QI-A1010D/B1010D

QI-A2017D/B2017D

QI-A4020D/B4020D

QI-A2010D/B2010D

QI-A3017D/B3017D

QI-C2010D

QI-C3017D

QI-C2017D
